CKS Suspension

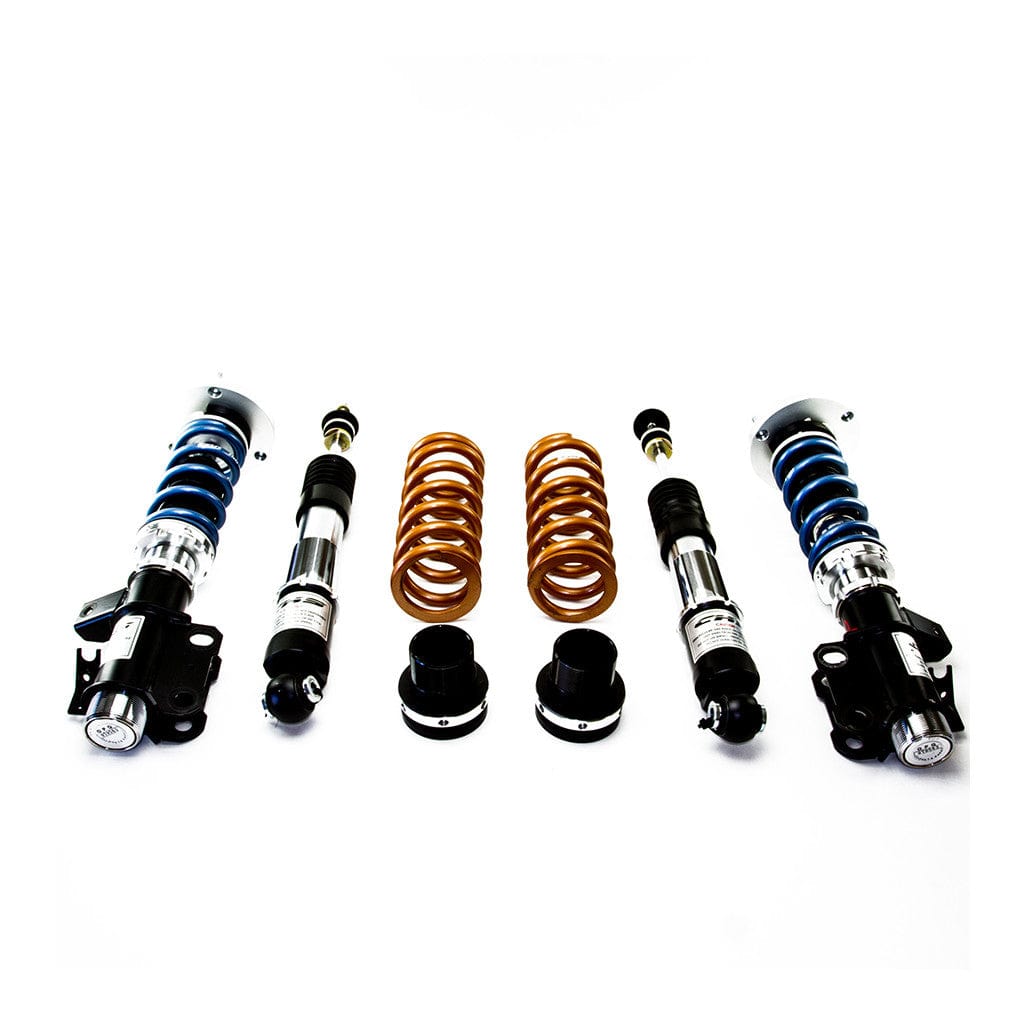

CTS-V3 CKS Coilover System

CTS-V3 CKS Coilover System

Regular price $ 2,299.00 USD
Regular price Sale price $ 2,299.00 USD
Sale Sold out

Refined Performance CKS Coilovers are built using only the highest grade materials. The upper mounts, lower mounts and spring perch are made out of 6061 T6 aluminum & rely on custom progressive CKS Refined Performance designed springs (circuit dedicated Swift Springs) with SCM440 hardened piston rods.

Our quality components gives you a smooth yet solid feeling ride, no matter if your driving through city pot holes, or racing on a track at 100+ mph.

CKS coilovers are the most reliable, safest & highest performing coilovers on the market. Refined Performance USA has a great working relationship with CKS. We worked closely with them to build our ALPHA Platform Kits. (Zeta chassis kits are available by special order.)

Refined Performance USA offers CKS Kits in three different setups: Street, Street/Track and Full Race.  This allows you to pick how aggressive you want your coiler valving.  They also offer 24 way dampening adjustability with a 9kg spring rate on the front and 12kg spring rate on the rear, making the RP/CKS coilovers the only choice for a fully adjustable coilovers kit for your Cadillac.



ATS            RP-AL-CA01

ATS-V         RP-AL-CA01-V

CTS            RP-CV-CA02

CTS-V        RP-CV-CA02-V

Camaro      RP-CA-CH01



(THE RP USA CKS COILOVER KIT IS FOR DEDICATED HANDLING PERFORMANCE AND IS NOT COMPATIBLE WITH GM MAG-RIDE. PLEASE NOTE THIS WILL NEED TO BE ADDRESSED BY PURCHASING MAG-RIDE DELETE MODULE FOUND HERE ON OUR WEBSITE.)

Tech Specs & Features-

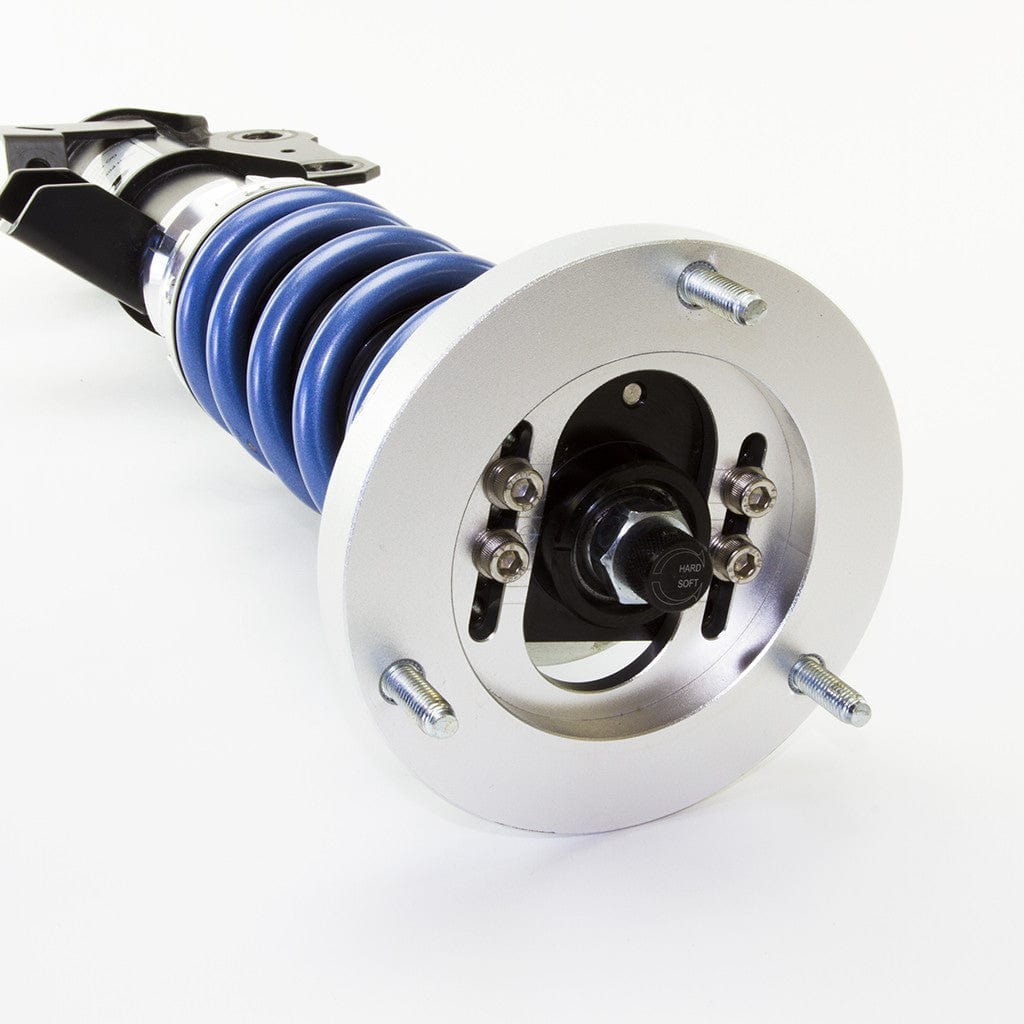

•     6061 T6 aluminum Pillow ball upper mount with hard anodized forged aluminum camber        plates

•     Hard anodized forged aluminum spring perch, locking perch

•     IP F.1A. 5W shock oil ( Optional high viscosity race oil also available )

•     HV900+ high strength steel suspension shaft

•     SWIFT springs(99.99 per spring) or Renick progressive rate springs(standard) and SCM440 hardened       piston rod spring perches

•     3 different setups, STREET, STREET/TRACK, FULL RACE

•     24 way dampening adjustability

•     Forged Aluminum upper mount

•     Forged Aluminum lower mount

•     Forged Aluminum perch

•     Mono tube designed (JIS G3345-STKM13C seamless steel shock body) ( 52 mm)

•     Mono tube design so shock /spring travel and spring rate will remain consistent no matter ride height (Optional forged aluminum shock body available)

•     Integrated dust boot to protect shaft with built in bump stop

•     Optional Swift springs
